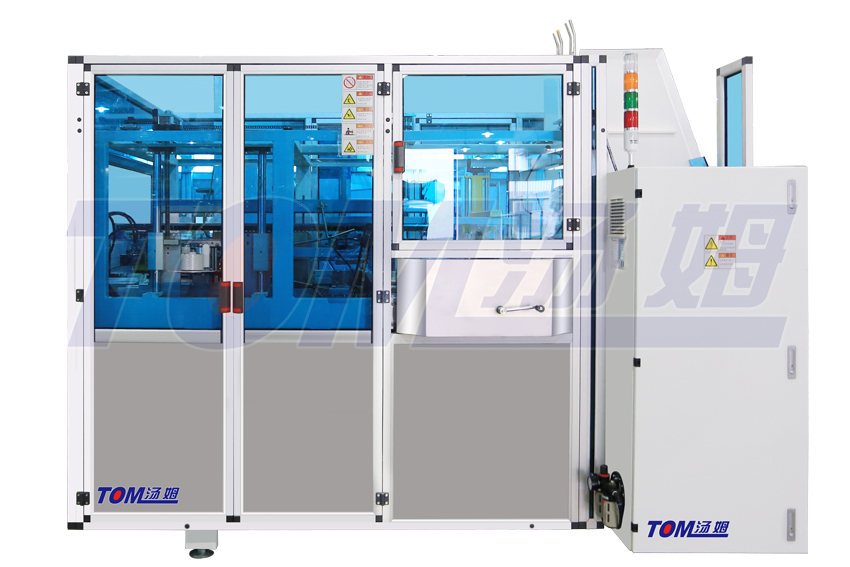

產品名稱:KXJ-400S520 高速開箱機
本機自動完成開箱、成形、下底折葉折曲,并限時完成下部分膠帶黏貼,專業精密設計,全機采用凸輪連續系統,機器運轉確實、穩定、耐用,突破傳統貼帶器之設計,封箱密合,膠帶撫平效果優良,決不跳帶。
全國免費咨詢熱線:400 100 0228
產品介紹 / roduct Description
全自動高速開箱機可以自動完成開箱、成形、下底折葉折曲,并現時完成下部分膠帶粘貼;紙箱板豎立工作,有助于穩定輸送;90度紙箱板儲存倉;適用于不同質量的紙箱;快速轉箱形;成形及封箱采用變頻控制可任意調整速度,可節省工時;操作簡單,調整容易;
Fully automatic caseton opening machine unpacker can automatic finish the work of carton opening ,shaping,folding and sticking the adhesive tage ,carton board working crect it help to stable conveying 90°storage warehouse of carton board is stable for conveying since the cases have already been formed.It is suitable for all kinds of cases with different quality .It is convenient and fast to change the specifications of cases.With forming and sealing,we adopt variable frequency control to adjust speed.It is time-saving,easily-adjusting.
產品特點
1、湯姆包裝機械專業精密設計,多家國際知名大廠指定采用。
2、成型及封箱可任意調整速度,節省工時。
3、操作簡單,調整容易,無損壞紙箱疑慮。
4、自動預警提醒補充膠帶及空紙箱。
5、可根據客戶要求定做。
Major characteristics
1.TOM packaging Machine are all precisely designed by professionals.
They have won lots of national patents and specified by many famous international
campanies.
2.The speed can be adjusted whiling forming and sealing,so it saves a lot of time.
3.It is characterized by easy operation and adjustment.The cases won’t be damaged during the process.
4.There is an alarm when there is no adhesive tape or empty cases.
5.It can be customized according to requirements of customers.
主要技術參數
1、機器尺寸:L:4000*W:1140*H:1800mm
2、紙箱規格:(L:200-450 W:150-400 H:100-350)
3、電源:220V/380V 50Hz/60Hz
4、整機功率:3.5KW
5、需備氣源:0.6Mpa潔凈穩定氣源
6、生產能力:25箱/分
Main Performance parameter
1.Machine size: L:4000*W:1140*H:1800mm
2.Carton size:(L:200-450 W:150-400 H:100-350)
3.Power source:220V/380V 50Hz/60Hz
4.Machine power:3.5KW
5.Air source:0.6Mpa clean and stable compressed air
6.Production capacity:25 box/min
